Choosing the right truck cap (also known as a camper shell, truck topper, or truck shell) for your pickup truck is far more involved than simply picking one that "looks about right." A perfect fit isn’t just about aesthetics; it’s crucial for safety, functionality, weather protection, and even maintaining your truck’s resale value. This is where the Truck Cap Compatibility Chart becomes an indispensable tool.

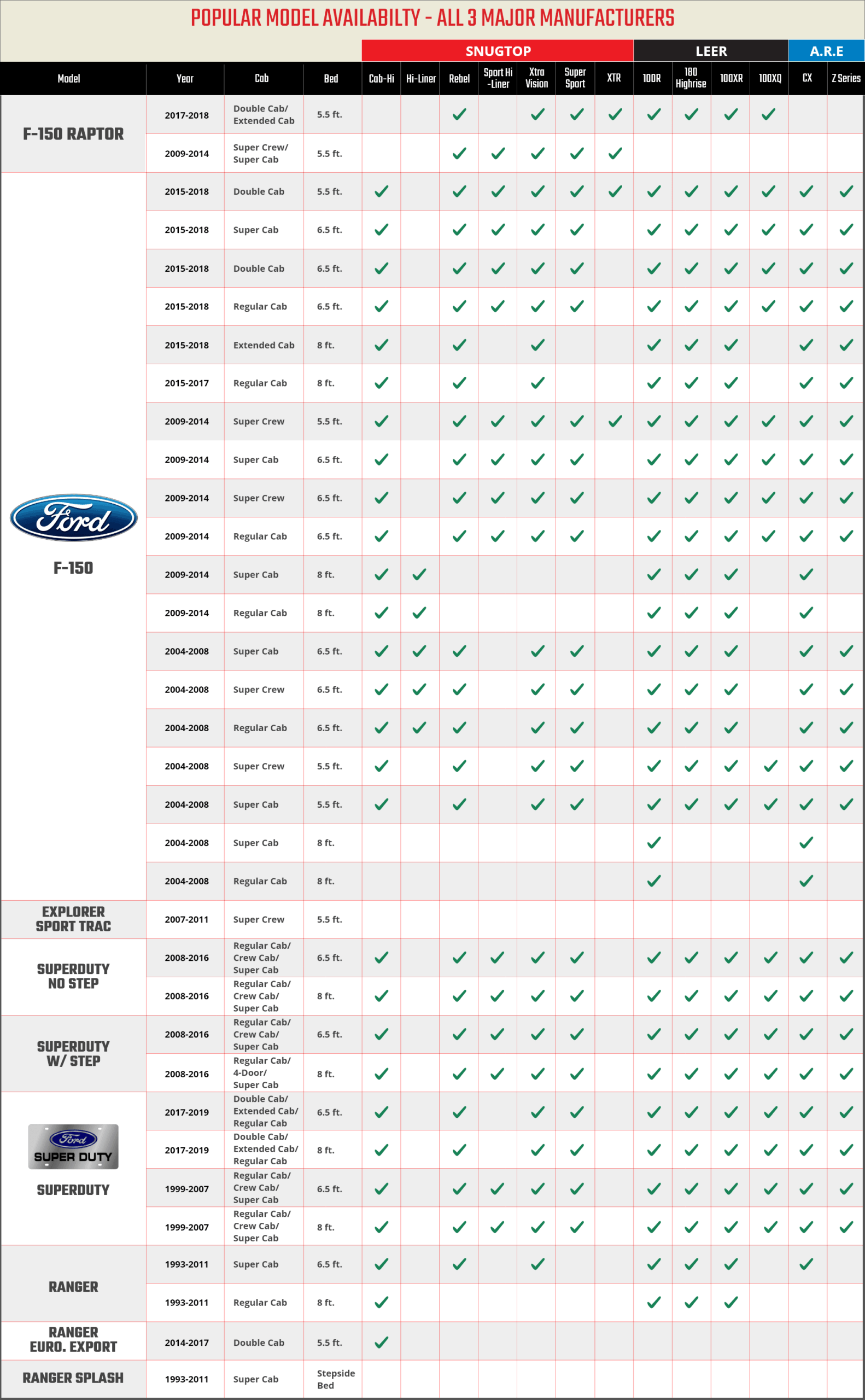

At its core, a Truck Cap Compatibility Chart is a detailed reference guide that matches specific truck cap models and sizes to particular truck makes, models, years, and bed lengths. It eliminates the guesswork, helping you avoid costly mistakes, ensure a secure installation, and achieve the seamless integration that makes your truck and cap perform as a single, cohesive unit. Without this chart, you risk purchasing a cap that doesn’t seal properly, rattles, looks awkward, or worse, poses a safety hazard. This comprehensive guide will walk you through everything you need to know about navigating and utilizing these vital charts.

Truck Cap Compatibility Chart: Your Ultimate Guide to a Perfect Fit

Why Compatibility Matters: More Than Just a Look

The importance of a precise fit extends beyond superficial appearances. Here’s why paying close attention to compatibility is paramount:

• Safety: A properly fitted truck cap secures firmly to your truck’s bed rails, preventing it from shifting, vibrating loose, or even detaching at highway speeds. It also ensures that any cargo inside is contained safely, reducing the risk of items becoming projectiles during sudden stops or accidents.
• Functionality & Weather Sealing: A snug fit guarantees effective weather sealing, protecting your gear from rain, snow, dust, and extreme temperatures. An ill-fitting cap will allow water intrusion, leading to damaged cargo and potential rust in your truck bed. Proper fit also ensures all windows, doors, and latches operate smoothly.
• Aesthetics: A cap designed for your specific truck model will flow with its body lines, matching the cab’s height and contours. This creates a factory-installed look that enhances your truck’s overall appearance, rather than detracting from it with an awkward, mismatched topper.
• Resale Value: Both your truck and the cap itself retain more value when they are a perfect match. Potential buyers are more likely to invest in a truck with a well-integrated cap that looks and functions correctly.



• Damage Prevention: An improperly sized cap can rub, scratch, or dent your truck’s paint and bed rails over time. Conversely, a cap that’s too small might not clamp securely, leading to instability and potential damage to the cap itself.

Decoding the Truck Cap Compatibility Chart: Key Dimensions and Factors

Understanding the information presented in a compatibility chart requires familiarity with the critical dimensions and features of your truck bed.

1. Truck Make and Model: This is the most obvious starting point. Is it a Ford F-150, Chevrolet Silverado, Toyota Tacoma, or Ram 1500?
2. Year of Manufacture: Crucial for identifying the correct generation of your truck. Truck bed designs, dimensions, and rail styles often change significantly with new model years (e.g., a 2014 Ford F-150 bed is different from a 2015 F-150 bed due to the aluminum body change).
3. Bed Length: This is arguably the most critical dimension. Truck beds come in various standard lengths (e.g., 5.5 ft, 6.5 ft, 8 ft). A cap for a 6.5 ft bed will simply not fit a 5.5 ft bed, and vice-versa.
4. Bed Width: While less variable than length, the width across the bed rails (especially at the bulkhead and tailgate) is important for a snug fit. Caps are typically molded to match these contours precisely.



5. Bed Rail Design:
   • Standard Flat Rails: Many older or basic truck beds have relatively flat, open bed rails.
   • Integrated Bed Rail Caps: Many modern trucks feature integrated plastic or metal caps over the bed rails, sometimes extending slightly inward or outward. The truck cap must be designed to sit flush on these.
   • Utility Track Systems: Trucks like the Toyota Tacoma (Deck Rail System) or Nissan Titan (Utili-track System) have integrated rail systems within the bed. While these often don’t directly interfere with the cap’s footprint, some cap designs or clamp styles might need to accommodate them.
6. Cab Style: While the cab style (Regular, Extended, Crew Cab) doesn’t directly affect the bed’s dimensions, it influences the overall truck’s length and can impact the aesthetic preference for the cap’s front profile (e.g., some prefer the cap to be perfectly flush with the cab roof, others prefer a slightly taller "wedge" or high-rise design).
7. Tailgate Design: Some caps are designed with specific tailgate interfaces, ensuring a tight seal when the tailgate is closed. This is less common but worth noting for certain specialty caps.

How to Use a Truck Cap Compatibility Chart: A Step-by-Step Guide

Using a compatibility chart effectively is straightforward once you know your truck’s specifications.

1. Step 1: Identify Your Truck’s Full Details:

   • Make: (e.g., Chevrolet)
   • Model: (e.g., Silverado 1500)
   • Year: (e.g., 2023)
   • Cab Style: (e.g., Crew Cab)

2. Step 2: Accurately Measure Your Truck Bed Length:

   • Open your tailgate.
   • Measure from the inside of the bulkhead (the front wall of the bed, closest to the cab) to the inside of the tailgate (when the tailgate is closed).
   • Important Note: Do not measure along the top of the bed rails, as this can be inaccurate. Measure straight along the bed floor or just above it. Round your measurement to the nearest half-foot or foot (e.g., 5′ 6" would be 5.5 ft).

3. Step 3: Consult the Compatibility Chart:

   • Locate your truck’s Make, Model, and Year in the chart.
   • Find the corresponding row or section that lists your bed length.
   • The chart will then indicate which specific cap models, series, or part numbers are compatible.

4. Step 4: Verify Other Factors:

   • Does your truck have a factory-installed bed liner? Some "over-the-rail" liners might slightly interfere with cap clamping, though most caps are designed to accommodate common liners.
   • Do you have any existing utility tracks or rail systems? Confirm the cap’s mounting system will work with or around these.

5. Step 5: Double-Check Manufacturer Specifications:

   • Once you’ve identified a compatible cap model from a general chart, it’s always wise to visit the specific cap manufacturer’s website (e.g., ARE, Leer, Snugtop, Access) and use their "Build & Price" or "Fitment Guide" tool. This will provide the most precise and up-to-date compatibility information directly from the source.

6. Step 6: Consider Professional Installation:

   • Even with the correct cap, proper installation is key to ensuring a secure, watertight seal. If you’re not comfortable with the process, consider professional installation from a reputable dealer.

Types of Truck Caps and Their Compatibility Nuances

While the core compatibility principles remain the same, different cap materials and designs can have slight nuances.

• Fiberglass Caps: These are the most common type, known for their seamless, painted-to-match finish. They are typically molded very precisely to specific truck models, making compatibility charts absolutely critical for finding the exact match. They come in various styles (cab-high, high-rise, wedge, commercial).
• Aluminum Caps: Often more utilitarian, durable, and lighter than fiberglass, aluminum caps are popular for work trucks. While many are still model-specific, some might have slightly more universal fitting elements, but precise bed dimensions are still paramount. They are usually less concerned with matching body lines precisely.
• Soft Toppers/Tonneau Covers: While not traditional "caps," soft toppers (like Softopper) and most tonneau covers also have compatibility charts based on truck make, model, and bed length. Their compatibility is more about the rail system they attach to rather than a rigid shell fitting precisely over the entire bed.
• Specialty Caps: This category includes commercial caps with toolboxes, adventure caps with roof racks, or custom-built units. Regardless of their specialized features, the foundational requirement of matching the truck bed’s dimensions remains unchanged.

Common Challenges and Solutions

Even with a compatibility chart, challenges can arise.

• "Close Enough" Is Not Good Enough: Resist the temptation to buy a cap that’s "almost" the right size because it’s a good deal. A slight mismatch in length or width will lead to leaks, rattles, or an unsightly appearance.
• Older Trucks/Discontinued Models: Finding a new cap for a truck that’s several generations old can be difficult as manufacturers phase out molds. Solutions include searching the used market (online marketplaces, salvage yards), or considering custom-built aluminum caps.
• Aftermarket Bed Liners/Accessories: Some "under-the-rail" bed liners are fine, but "over-the-rail" liners or large aftermarket bed rail caps might interfere with the truck cap’s clamping system. Always check for clearance and consult with the cap dealer.
• Measuring Mistakes: The most common error is inaccurate bed measurement. Double-check your measurements, and if possible, have a second person verify them.
• Misinterpreting the Chart: If a chart is unclear or you’re unsure about a specific truck feature, don’t guess. Contact a reputable truck cap dealer or the cap manufacturer directly for clarification. They are experts and can often confirm compatibility with just your truck’s VIN.

Practical Advice and Actionable Insights

• Measure Yourself: Do not rely solely on your truck’s manual or online specifications for bed length. Physically measure your truck bed yourself to avoid any discrepancies.
• Verify Used Caps: If purchasing a used cap, ensure you know the exact make, model, and year of the truck it originally came off. Then, cross-reference that truck’s specifications with your own.
• Consider Cap Profile: Think about how you want the cap to look relative to your truck’s cab. Do you want it to be flush with the cab roof, slightly taller, or significantly higher? This is an aesthetic choice that complements the core compatibility.
• Account for Existing Accessories: Before buying, inspect your truck bed for any existing toolboxes, bed rails, or other accessories that might interfere with the cap’s footprint or clamping points.
• Consult the Experts: Reputable truck cap dealers have extensive knowledge and access to proprietary compatibility databases. They can often tell you definitively what fits your truck.

Example Truck Cap Compatibility & Price Guide (Illustrative)

This table is a demonstration of what a compatibility chart might look like, including estimated price ranges for common new caps. Prices are highly variable based on features (windows, lights, racks, liners), finish (paint match), and brand, and should be considered general estimates only. Always obtain a specific quote for your desired cap.

Truck Make/Model/Year	Bed Length (Approx.)	Compatible Cap Type (Example)	Est. New Price Range (USD)	Notes on Compatibility
Ford F-150 (2015-Current)	5.5 ft	Fiberglass (Cab-High)	$2,000 – $3,500	Designed for aluminum body. Specific rail clamps required.
Ford F-150 (2015-Current)	6.5 ft	Fiberglass (High-Rise)	$2,200 – $4,000	Provides extra headroom. Must match cab-height for front profile.
Chevrolet Silverado 1500 (2019-Current)	5.8 ft	Fiberglass (Cab-High)	$2,000 – $3,500	Specific bed rail contour. Ensure proper sealing for new tailgate designs.
Chevrolet Silverado 1500 (2019-Current)	6.6 ft	Aluminum (Work/Commercial)	$1,800 – $3,000	Durable, often with internal bracing for racks. May have less aesthetic contouring.
Toyota Tacoma (2005-Current)	5.0 ft	Fiberglass (Cab-High)	$1,800 – $3,200	Designed to work with or around Tacoma’s Deck Rail System.
Toyota Tacoma (2005-Current)	6.0 ft	Soft Topper	$800 – $1,500	Fabric construction, folds down. Attaches via clamp-on rails.
Ram 1500 (2019-Current)	5.7 ft	Fiberglass (Cab-High)	$2,100 – $3,600	May need to account for RamBox cargo management system if present.
GMC Sierra 2500HD (2020-Current)	6.9 ft	Fiberglass (High-Rise)	$2,500 – $4,500	Heavy-duty construction for larger trucks.
Nissan Frontier (2022-Current)	5.0 ft	Fiberglass (Cab-High)	$1,900 – $3,300	Specific bed dimensions for new generation.

Frequently Asked Questions (FAQ)

Q: Can I use a truck cap from a Ford F-150 on a Chevrolet Silverado?
A: Almost certainly not. Truck beds differ significantly in length, width, and bed rail design between manufacturers and even between different models or generations from the same manufacturer. A cap is custom-molded to fit a specific truck bed.

Q: How do I measure my truck bed for a cap?
A: Measure the inside length of your truck bed from the bulkhead (front wall) to the inside of the closed tailgate. Measure along the bed floor, not over the rails.

Q: Do all truck caps come with clamps or mounting hardware?
A: New truck caps typically come with the necessary clamps and hardware for installation. Used caps may or may not, so always confirm with the seller.

Q: Can I install a truck cap myself, or should I get professional installation?
A: Many truck caps can be installed by a DIY enthusiast with basic tools. However, professional installation ensures a secure, watertight fit, proper wiring for lights, and can save you time and potential frustration. If you’re unsure, opt for professional installation.

Q: What if my truck isn’t listed on a compatibility chart?
A: For very old or rare trucks, finding a chart might be difficult. Your best bet is to contact a custom cap manufacturer (often specializing in aluminum) or a truck accessory shop that deals with a wide range of brands. They might have historical data or be able to fabricate a custom solution.

Q: Does the cab style (e.g., Crew Cab vs. Extended Cab) affect cap compatibility?
A: No, the cab style typically does not affect the actual dimensions of the truck bed itself. However, it does affect the overall length of the truck, which might influence your aesthetic preference for how the cap’s front profile aligns with the cab’s roofline.

Q: Are used truck caps a good option?
A: Used caps can be a cost-effective solution, but they come with risks. You must verify the cap’s original truck fitment, inspect it thoroughly for damage (cracks, leaks, worn seals), and ensure all windows, latches, and wiring are functional. Compatibility is even more critical when buying used.

Conclusion

The Truck Cap Compatibility Chart is the cornerstone of a successful truck cap purchase. It’s not just a suggestion; it’s a critical guide that ensures your investment in a truck cap yields maximum benefit in terms of safety, functionality, and aesthetics. By accurately measuring your truck bed, diligently consulting the relevant charts, and not shying away from professional advice, you can confidently select a cap that fits like a glove. A perfectly compatible truck cap will not only enhance your truck’s utility and appearance but will also provide years of reliable service, protecting your gear and complementing your lifestyle on the road.
